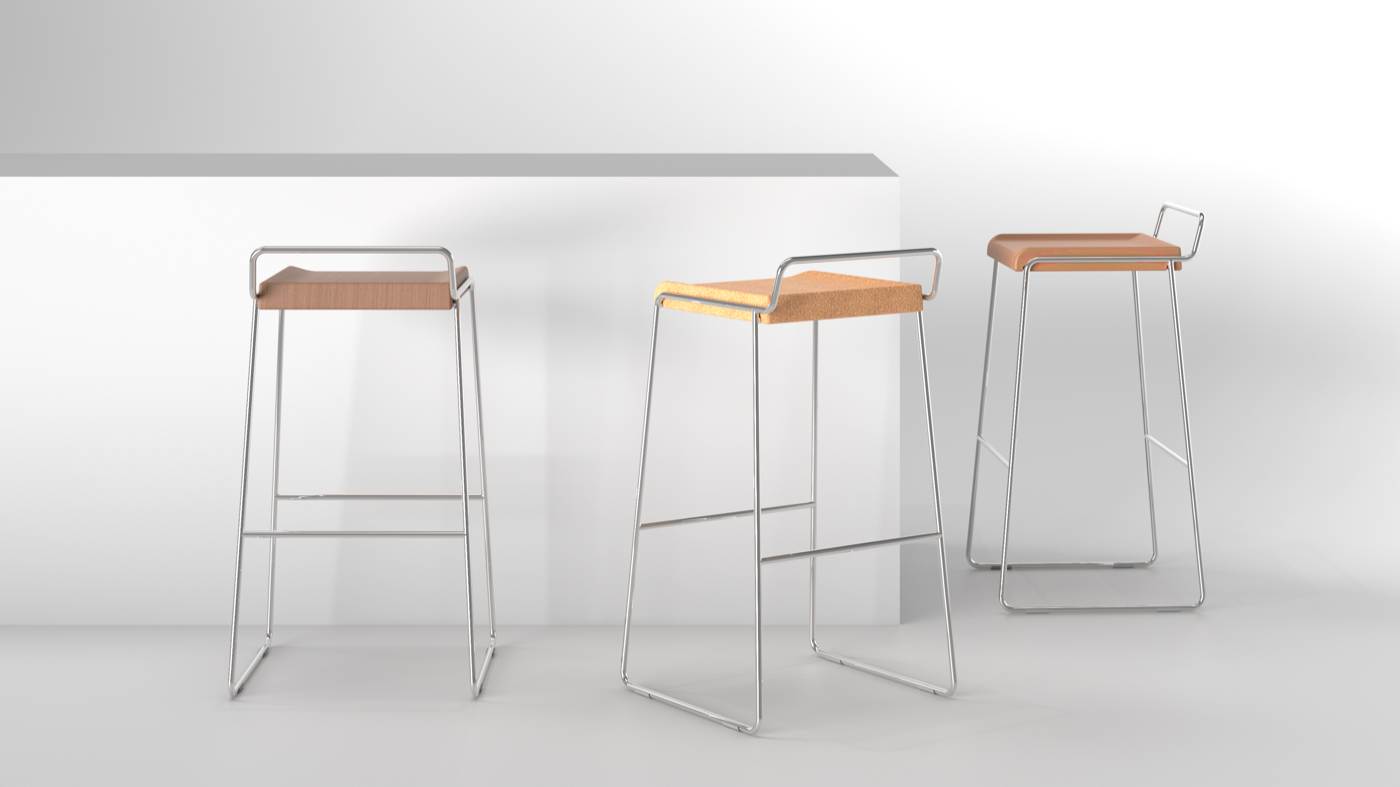

Camber

Light & Elegant

The frame shouldn’t be serving the only purpose of supporting the seat. Instead, the frame should be part of the seat, which is exactly the main idea of Camber. The polished stainless steel frame contains a flow from top handle to the bottom leg.

This time, let me present the new material besides traditonal wood: the cork. The high-density cork never gets too cold and provides softness to the seating experience. It is also stiff enough to be CNCed.

Why the word Camber?

The name was inspired by the shape of the seat: the curvature on top that is carved inward. This slight little curve ensures that the seat will fit our body and stop from sliding off.

Let's reveal the parts.

This is how Camber was fabricated: it has four main components: the polished stainless steel frame, the natural single-piece seat, the stainless steel screws, and the zinc alloy tapping inserts.

The frame was handmade locally in California, and the seat was CNCed at ArtCenter. The hardwares are from McMaster-Carr.

The seat is available in walnut, oak, and cork.

1:1 scaled mockup

I tried several forms and explored the relationship between the frame and the seat.

Made a 1:1 scale model with wood stick and SLA print to see the proportion.

Fabrication

Purchasing raw lumber.

CNC on glued pieces.

1/2 inch diameter stainless steel tube bending.

Dry fit.

International Contemporary Furniture Fair

Camber was showing to public on ICFF 2023 for the first time with Bernhardt Design and ArtCenter. It was a fantastic opportunity for sharing my design and learning from other people.

NeoCon 2023

Camber was also exhibited on NeoCon 2023 from June 12-14 with Bernhardt Design. People love the cork.

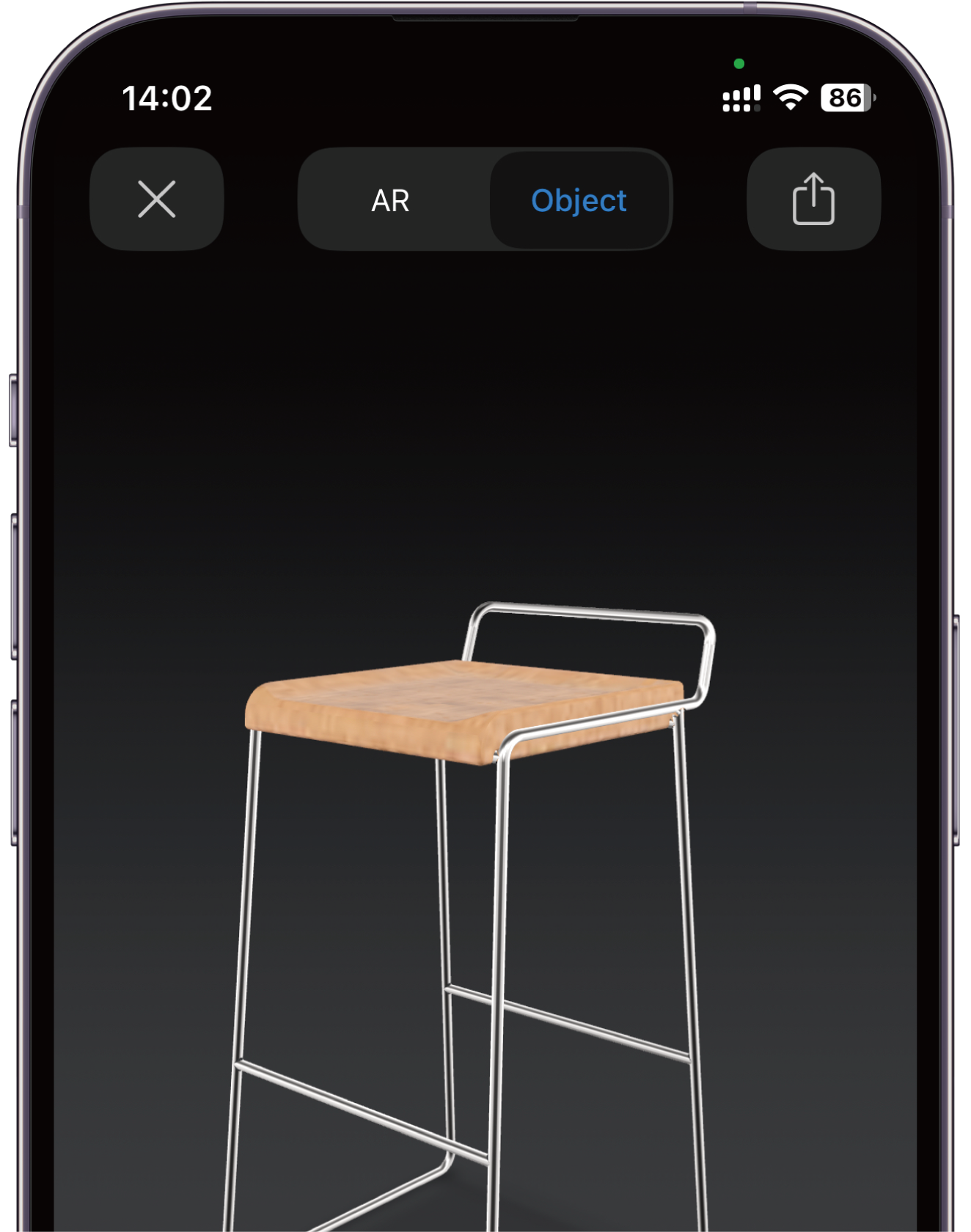

Use AR to see Camber.

View in AR
